How To Fix Xiaomi Redmi 5 Plus No Backlight LCD Display

Hello, revisit with Mobilintec Team. This on will provide a repair solution from the phone damage Xiaomi Redmi 5 plus no backlight display LCD.

No display light damage includes a dark phone screen, white screen, or no LED light. This could be caused by the affected fluid on the Xiaomi Redmi 5 phone plus. Or users who accidentally dropped the phone.

No display light or no backlight damage to Xiaomi Redmi 5 Plus is a typical problem. Where in fact the phone can still turn on and it is normal. You can also hear the ringtone from the phone call or message notification tone and the other. However, the absence of images and light is produced by the phone's LCD screen. So it would be difficult for users to activate their own mobile phones.

Following are some of the issues of damage No Backlight LCD Display that could have happened:

  • Display on a white LCD screen
  • No display or light on the LCD
  • The light dimmed on the screen
  • The image is visible on the screen but without light
Maybe as an initial step to repair the damage of Xiaomi Redmi 5 plus no backlight could you replace the new LCD panel. It does not cover the possibility of no display light damage due to the faulty LCD panel.

But it will be different if it has replaced the LCD but still the problem no display light still appears on the phone Xiaomi Redmi 5 plus. Then it is recommended for you to perform the examination on the part of the internal components associated as LCD light drivers.

You can also refer to the LED components using the Multimeter tool. This should be done carefully so as not to damage the LCD panel and also a flexible cable.

If after conducting the LED and the conditions are in good condition. Then there can be certain damage contained in the internal components of the phone Xiaomi Redmi 5 plus.

How to fix a smartphone Xiaomi Redmi 5 plus backlight

How To Fix Xiaomi Redmi 5 Plus No Backlight LCD Display

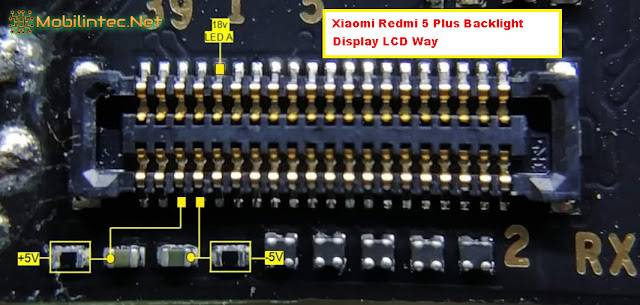

1. Perform an examination on the pin connector of the LCD socket, in case of imminent damage to the solder so that the condition returns to normal and good.
2. Inspect each component of the resistor that is connected, if there is damage immediately replace with the same value component.
Read Also: Repair Speakerphone Xiaomi Redmi Note 5 Pro Not Work

4. Please state the condition of each connector socket in a clean state, when it is encountered corrosion and rust immediately wipe with alcohol.

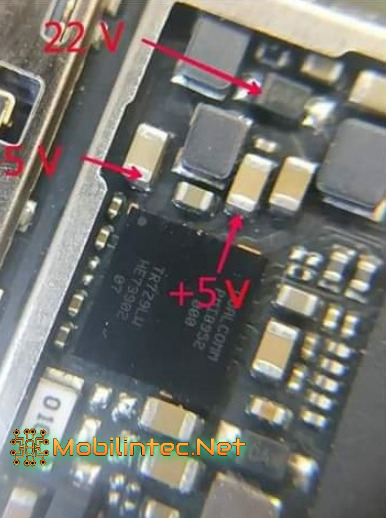

5. Check some of the components listed in the diagram image, whether to produce the appropriate voltage.
How To Fix Xiaomi Redmi 5 Plus No Backlight LCD Display
6. Replace the components that do not produce the appropriate voltage in the diagram image, this can be the triggering damage no backlight.

Thus some repair steps can be applied to overcome the damage Android phone Xiaomi Redmi 5 plus no backlight. Hopefully this information and tutorial can be useful for all of you. Thanks.
