How To Fix Android Damage LG G3 Total Dead

How to fix Android damaged LG G3 total dead - The LG-D855 G3 Android smartphone is an output mobile phone from LG Electronics that has Qualcomm's 2.5 GHz Quadcore CPU specifications. And also has an internal memory capacity of 16GB/2GB and also 32GB/3GB. With spec like this then a smartphone LG G3 very suitable to be used as a mobile Android gaming.

But on this occasion, Mobilintec Team will try to discuss the problem of damage to the LG-D885 G3 phone that dies completely. Then what steps can be done to fix the damage.

Here are some steps that can be done to fix the Android smartphone LG-D885 G3 dead Total

As a first step, you can check using the power supply. This can detect the condition of the phone whether it is shorting or not. Usually, if the phone is shorted then the phone feels hot even if you do not press the power button on-off at all.

But if the condition of the phone is under normal conditions when testing with the help of the power supply tool. The next step should be to check the internal components of the LG-D885 G3 smartphone.

Check components and voltages

The step to take is to unload all parts of the phone so that you can inspect each part of the component freely. Mobiintec Team has provided a diagram drawing that can be a guide for you to analyze total dead damage on LG G3 phones.

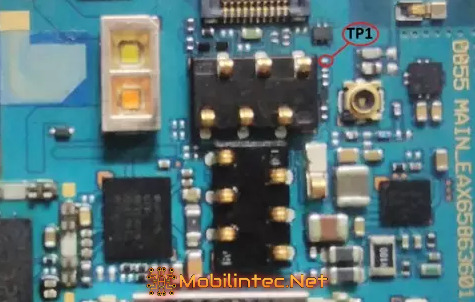

Take measurements in the TP1 by using a multimeter, whether there is a voltage of 1.8 volt DC. If there is no center in the section, there can be damage to the IC regulator with code PM8841.
How to fix Android damage LG G3 total dead
Also, perform measurements at TP2 and TP3 points and make sure that in the TP2 section there is a voltage of 0.95 volts DC. And also measure the voltage at the TP3 point whether there is a voltage of 0.9 volt DC.
How to repair a smartphone LG G3 D855 total die
The step is to measure the voltage at the TP4 point and if there is a voltage of 1.8 volt DC.
How to repair a smartphone LG G3 D855 total dead
If at one point between TP2 and TP3 there is not a center for the measurement is done, there is certainly damage to the IC regulator coded PM841. It is mandatory to change with the new IC components.

But if only at TP4 point that does not emit voltage then the damage occurs in IC power coded PM8941.

But there are some cases on the Android smartphone LG-G3 D855 completely dead and how to handle it enough to reheat the second IC regulator and the result of the phone back to life normally.

That's one way of fixing total dead damage on an LG-G3 D855 smartphone. Hopefully with this tutorial can be a guide for you to repair the damage to the Android smartphone LG-G3 D855. Thanks
