10 Steps To Replace Battery In PS4 Controller With Nokia Battery

10 Steps To Replace Battery In PS4 Controller With Nokia Battery

Replace battery in ps4 controller with Nokia battery - Hello meet again with Mobilintec Team, this time we will discuss how to Replace the battery in ps4 controller.

Why replace battery in PS4 controller?

Of course, battery replacement can be done if some things cause interference to the ps4 controller.

What are the problems with the ps4 controller? If there is damage to the battery contained in the controller. Battery damage to the PS4 controller stick is characterized by the following conditions:

  • The battery cannot be charged.
  • Charge the battery quickly even though it has been charged for a long time.
  • Wireless connection is always disconnected due to low battery condition.
  • The controller cannot turn on if it is not connected using a USB cable.


Then can Replace battery in ps4 controller with the Nokia battery?

This of course you can do and does not affect the performance or function of the PS4 controller itself. Besides, this method can also save costs in making repairs on the PS4 controller.

Because you can do it yourself without having to bring to the special service place console game sony PlayStation.

Here Mobilintec Team will provide steps that can be done to replace the ps4 controller battery using Nokia phone batteries.

Steps to Replace battery in ps4 controller with Nokia battery


1. Open cover and 4 bolts on the PS4 controller

Open cover and 4 bolts on the PS4 controller

For the first step, you have to open the back of the PS4 controller along with its 4 bolts. Set the part aside in a safe place.

2. The open front and rear covers

The open front and rear covers

The next step opens the front and back according to the image. You can use thin-shaped objects like pick guitars to do this.

3. Secure small components from the controller

Secure small components from the controller

In the picture, there are visible components and also small parts of the PS4 controller such as a wire and a rubber reset button. Make sure you keep this component in a safe place.

4. Remove flexibel cable

Remove flexibel cable controller ps4

Next, remove the flexible cable connected to the PS4 mainboard controller carefully. This flexible cable is a link to the back cover and also the front cover.

5. Remove the battery

Remove the battery controller ps4

Remove the battery contained in the PS4 stick controller by unplugging it from the socket on the motherboard.


6. Cut battery socket cable

Cut battery socket cable

The next step is to cut the PS4 controller battery cable to connect to the battery belonging to Nokia phones.

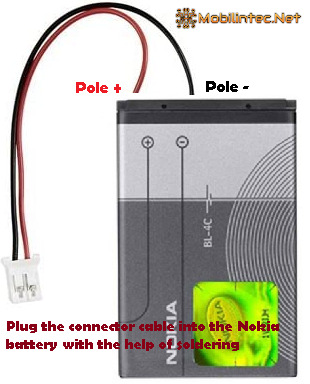

7. Connect the cable to your Nokia battery

To determine the suitable battery paired on the PS4 controller, you can choose a Nokia battery with BL-4C type or a Nokia battery with BL-5B type. Make sure the battery is in good condition.

Steps to Replace battery in ps4 controller with Nokia battery

To connect the cable to Nokia batteries are required soldering equipment and also tin. Connect the red cable to the pole + and the black cable to the pole - on the battery.

For the middle pin on the Nokia battery, you can ignore it. This will not interfere with the functionality and performance of the PS4 controller.

8. Plug the Nokia battery into the PS4 controller

Furthermore, after the cable installation has been completed, then plug the battery back into the socket contained in the mainboard controller PS4. We recommend that you try to test the controller function if it can turn on normally.

9. Reinstall the entire PS4 controller

Reinstall the entire PS4 controller

If the controller can turn on and function properly, the next step raft back the entire ps4 controller parts such as flexible cable, wire, rubber button, and also the back cover to its original position. After that install 4 bolts on the back of the PS4 controller, so that the front and back covers are firmly attached.

10. Controller PS4 ready for re-use

Controller PS4 ready for re-use

It is recommended to test the function again on the PS4 controller whether all goes well without any problem. If he senses everything is working properly, it is best to first charge the Nokia battery that has been plugged into the PS4 controller until it is fully powered.

Read Also: Can I Replace A PS3 Stick Controller Battery With A Nokia Battery

That's 10 Steps to Replace battery in ps4 controller with the Nokia battery. Surely this way is easy enough for you to do. And it can also save costs in repairing ps4 controllers that have problems with their batteries.

If you have an unused Nokia phone, of course, the battery from the Nokia phone can be used to replace the damaged PS4 controller battery.

However, if you don't have a Nokia battery with BL-4C or BL-5B type, then you can buy it at a mobile accessories store or through an online store.
